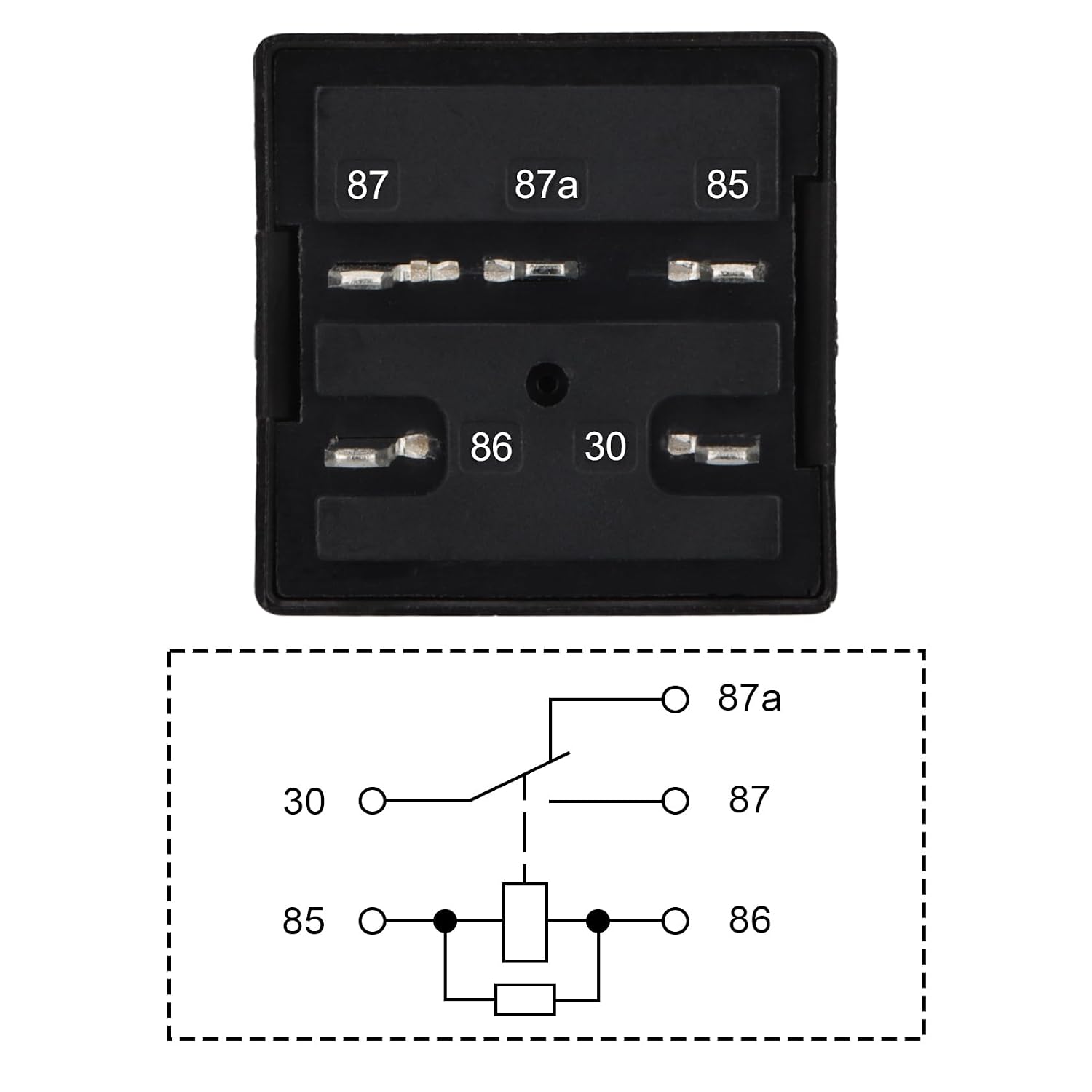

Professional Multi-Purpose Relay, 1 Form C 30A 5 Pins with Resistor, Compatible fo Chevy GMC GM Buick Coolant Temperature Sensor and Fan Control, Replace 12193602, 15-81106, 96263403
Product details
| Management number | 237390450 | Release Date | 2026/07/10 | List Price | US$2.40 | Model Number | 237390450 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Rated Voltage: 12VRated Load: 1C:NO/NC 30A/20A 13.5VDCContact Form: 1CContact Material: AgSno2Max,Operating Current: 30AMax.Operating Voltage: 27VDCAmbient Temperature: -40°C~+85°CReplace Part Number: 12077865, 12135198, 12177234, 12193602, 12193612, 13503103, 19115298, 19116363, 21997408
- Rated Voltage: 12V, Max,Operating Current: 30A, Rated Load: 1C:NO/NC 30A/20A 13.5VDC, Contact Form: 1C 5Pins
- Replace Part Number: 12077865, 12135198, 12177234, 12193602, 12193612, 13503103, 19115298, 19116363, 21997408
- Before replacing a relay, visually inspect the entire circuit, including the components, relays, connectors, and wiring in the circuit. Look for heat damage and damaged wires
- IMPORTANT: Please check description or use year/make/model and interchangeable part numbers to confirm compatibility before purchasing
- Package: 1Pack Relay
| ASIN | B0DZWV1JQD |
|---|---|
| Model | 1C 1Pack |
| Brand Name | Weasch |
| Unit Count | 1.0 Count |
| Part Number | 827D |
| Coil Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | Weasch |
| Mounting Type | Plug In Mount |
| Connector Type | Plug-In |
| Current Rating | 30 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver Alloy |
| Specification Met | CE |
| Included Components | 827D |
| Contact Current Rating | 30 Amps |
